SG 350A93-3224-00 Retainer / bearing installation


Retainer / bearing installation

This tool is used to install the planet gear carrier assembly (epicyclic) in the 4-contact bearing.

Data Sheet

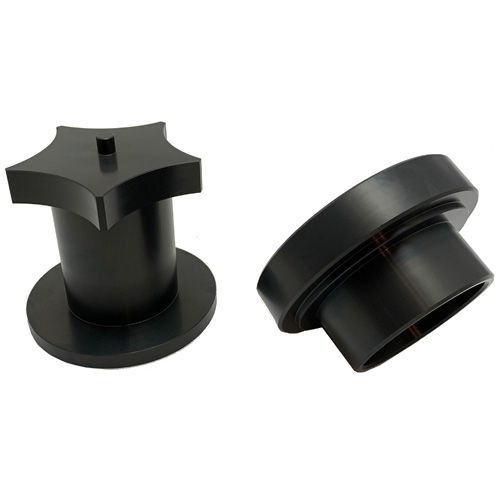

SG350A93-3224-20 Pusher

SG350A93-3224-21 Mount


Product Description

Planet Gear Box Fixture

This tool is used to install the retainer equipped with the 4-contact bearing on planetary gear.




Maintenance centers are always the last responsible for the tools they are working with, including the one detailed above so that Squirrel’s Garage assumes no responsibility for the use or the result of having used this tool. Any kind of certificate Squirrel’s Garage can provide does not release the user from the obligation of own judgment, check proper condition of the tools and verify they can comply with the specifications written on the manuals.

Additional Information

Weight 6.9 kg
Dimensions 17 x 16 x 12 cm

Blued steel.
